ELECTRICAL ITEMS

Accord Supply Chain and Trading LLC is indulged in supplying various kinds of electrical materials under the below catagories

Item No.	Category	Item No.	Category
1	Transformer	13	Voltage regulator
2	Conduit fittings	14	Wire connector
3	Distribution	15	Wire management products
4	Electrical boxes and Enclosures	16	Lightings
5	Extension cords	17	Lamps
6	Pugs	18	Indoor and outdoor fixture
7	Relays	19	Ballasts
8	Electric wire and cables	20	Emergency lighting
9	Electric motors	21	Task light
10	Starter and contactors
11	Switches and sockets
12	Hazardous location fixtures

Insulation

Cross linked polyethylene type

Armored

Galvanized round steel wireAnnealed Solid Copper conductors

we have different kinds of cables which can be used for heavy and light electrical installations

STREET LIGHT

LAMP

High Pressure Sodium 100W/150W/250W/400W tubular.

Capacity : 90W/140W CPO-TW.

CONTROL GEAR

Fitted within lantern body, on easily-removable gear tray, complete with

isolating plugs and sockets.

Magnetic gear - Self-resetting thermal cut-out fitted in ballast.

Digital timed cut-out igniter fitted as standard.

Electronic gear - thermally managed to ensure the ballast runs

at a minimum temperature, thus increasing lifetime.

BODY

High pressure die-cast aluminium, with stoved polyester RAL7040 paint finish (over a

RoHS-compliant chrome passivation substrate).

CANOPY

High pressure die-cast aluminium, with stoved polyester RAL 7040 paint finish

(over a RoHS-compliant chrome passivation substrate). Rear hinging to provide

access to lamp and control gear. The canopy ensures a control gear compartment

tightness of IP66. It has a sprung stainless closure catch, with locking arm to keep

canopy open whilst the lantern is being maintained.

INSTALLATION INFORMATION

Mounting:

Horizontal on a 60mm, 48mm or 42mm diameter bracket arm with 120mm penetration.

Locking by means of two M8 stainless steel Allen screws. Vertical on a 76mm or 60mm

diameter column using the tool-free reversible mounting casting (76mm penetration).

Photometric Centre: Distance from back of lantern to photometric centre: 0.60m

DIMENSIONS:

Height: 199mm (flat glass), 225mm (curved glass)

Width: 334mm

Length: 893mm

WEIGHT: (Indicative maximum weights including lamp and control gear)

High Pressure Sodium 100-150W: 10.9kg (electronic gear)

High Pressure Sodium 250W: 13.4kg (conventional gear)

High Pressure Sodium 400W: 15.4kg (conventional gear)

DESIGN:

Body and canopy painted RAL7040, or black

Electronic control gear

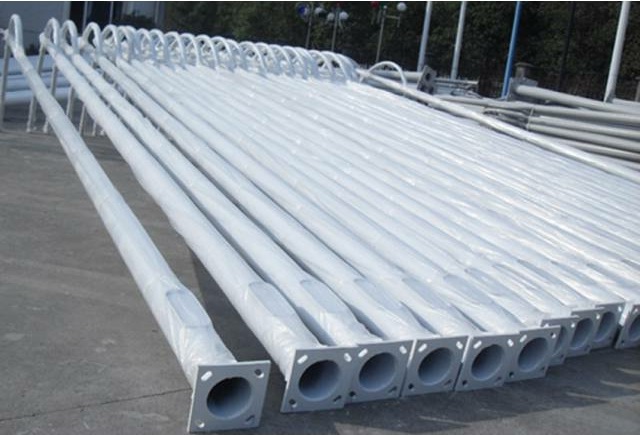

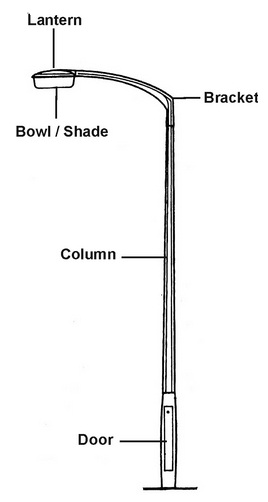

POLES SOLAR STREET LIGHT LED STREET LAMP STREET LIGHT STRUCTURE

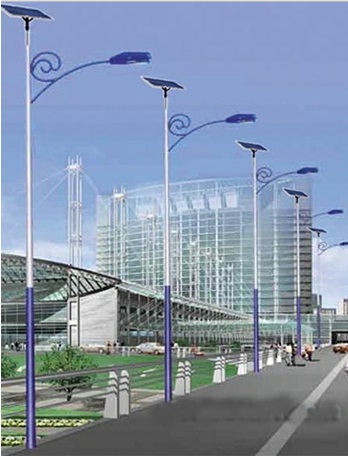

LED SOLAR STREET LIGHT / LED STREET LAMP

ADVANAGES OF LED LIGHT BULBS?

LED light bulb can last you up to 30,000 hours. That averages out to 6 hours of light per day for 12 years
LED light bulbs are so energy efficient that, depending on how often you have them on, they'll actually pay for themselves in just over a year.
LED light bulbs run cool, so they're safer to use than fragile, burning hot halogen and incandescent bulbs.
LEDs turn on instantly - which has been a big benefit in car brake lights and is also a welcome feature when testing lights in a dark basement.
LEDs do not use mercury like CFLs - so disposal concerns aren't the same.
Save money on electricity
Use only 2-10 watts of electricity (1/3rd to 1/30th of Incandescent or CFL)
Long lasting - up to 30,000 hour bulb life
Cool running (warm to the touch) - little heat compared to standard bulbs
Can sustain moderate power surges
Durable bulbs with no fragile filaments to break from shaking and rattling
Directional lighting generates less wasted light

Works with sensor activated lights

LED ENERGY EFFICIENCY

Here's how LED light bulbs compare to ordinary bulbs: A regular 40 Watt incandescent bulb burns through a lot more energy than it needs to produce the light you see. Remember those toy ovens that used an incandescent light bulb to bake brownies? A large percentage of the energy that goes into a 40 Watt bulb is wasted as heat - great for baking brownies, not so great for conserving electricity and saving money. LED light bulbs, on the other hand, generate very little heat as they glow, instead transferring most of their energy directly into light.

The latest LED light bulbs now produce about the same amount of light per watt as compact fluorescent bulbs (CFL). However, unlike incandescent bulbs and CFLs, which splash light in all directions, LED bulbs are directional. They drive their light in one direction, so that you have light exactly where you want it. This directional lighting equals savings in yet another fashion. LEDs don't waste light (energy) on areas you don't need illuminated, which is also why they're perfect task lights.

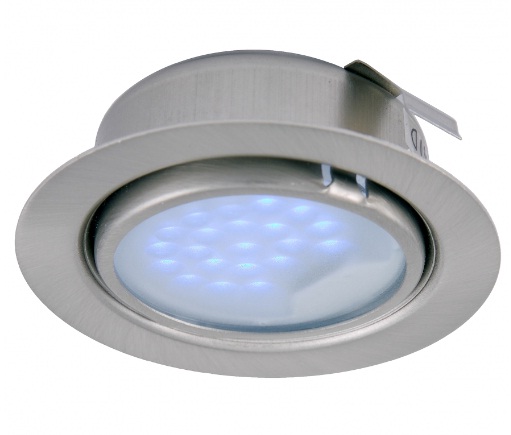

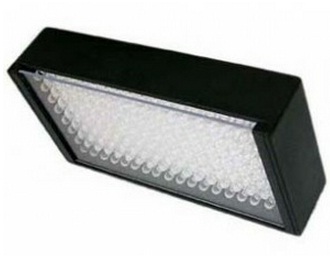

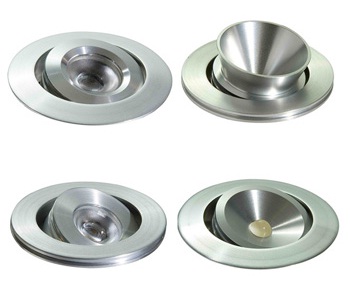

We Provide : LED Spotlight, LED Bulb, LED Tube, LED Street Light, LED Ceiling Lamp,

LED Wall Lamp, LED Lamp Housing, LED Lamp Holder, LED Fittings, etc

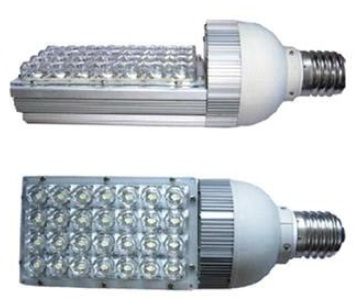

SPECIFICATION:

1. Consumption: 28X1W

2. Light Source: 28PCS of 1W Power LED

3. Lamp Base: E40

4. Main Material: Aluminum House with PMMA Lens

5. Input Voltage: AC 85-265V

6. Output Current: 350mA

7. Light Color: Cool white/Natural white/Warm white/Blue/Green/Red/Yellow

8. Product Size: Φ 92mm× H 272mm

OTHER PARAMETER:

1. Operation Temperature: -20~ 50 Celsius degree

2. Ambient Temperature: Less than 60 Celsius degree

3. Color Temperature: 2700-9000 K (Optional)

5. Power Factor: ≥ 0.9

6. Brightness Decay: 3%-5% at 1000 hours

7. Luminous flux: 2240-2800lm

8. Protection Rate: IP54

FEATURE:

1. Pure Aluminum House with High Transparent PMMA Lens

2. With quality famous-brand LED Inside(Cree, Bridgelux, Edison, Epistar LED for option)

3. Lifetime: 50000 hours(17 years with 8 hours per day)

4. Proprietary design for excellent thermal management and lumen maintenance.

5. Adopt ceramic socket for better insulation and heat dissipation.

6. Wide voltage and constant current design

7. The products are in accordance with CE and RoHS testing standards.

8. No ultraviolet (UVA, UVB, UVB) or radiofrequency (RF) energy.

9. Over current protection and reversed polarity protection.
